DS 500-detergent compartment
for four 1.25gal. [5liter] jugs

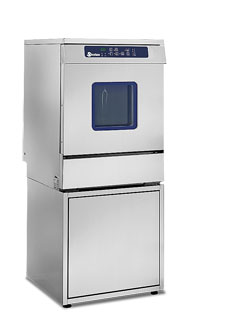

DS 500-series with 2' [600mm] base

Key features
> Up to 8 instrument trays 20" x 10" x2" [500x250x50mm]
> RS232 interface for printer- or PC connection
> LCD operator panel with 40 adjustable cleaning cycles
> Build in water softener
> Glass viewing window available
> Washing and thermal disinfecting temperature adjustable up to 200ºF [93ºC]
> Temperature monitoring by two independent PT-1000 probes
> Exhaust steam condenser standard
> Heavy duty wash pump with high flow rate and low pressure for efficient and gentle cleaning
> Chamber made of stainless steel 316L
> High efficient triple water filtering
> Two liquid dosing pumps standard included (additional 2 available as option)

General
> The Steelco Instrument Washer Disinfector Series 500 is ideal for doctor offices, surgery centers and small
   hospitals to wash, disinfect and dry surgical instruments.
> Easy to install under or on a counter, as single door version
> Thermal disinfection with a temperature of up to 200ºF [93º]
> Integrated hot air dryer available
> Compliant with EN ISO 15883 and HTM 2030 standards for washer disinfectors
> Classified under CE medical device and FDA registered
> UL - listed

Small Steelco under-counter Instrument Washer Disinfector

Steelco Dental Washer-Disinfector DS500SC
Dimensions: (W x D x H)
External: 23.6" x 24.8" x 33.1" [600x630x840mm]
Internal: 20.5" x 19.7" x 20.9" [520x500x530mm]
Max. basket capacity: 37gal. [140liter]
Electrical connection: 1x220V, 3x208V/60Hz

- Single Door
- Convection Drying
- 2 Dosing pumps for liquid detergent

Steelco Dental Washer-Disinfector DS500CL
Dimensions: (W x D x H)
External: 23.6" x 24.8" x 33.1" [600x630x840mm]
Internal: 20.5" x 19.7" x 20.9" [520x500x530mm]
Max. basket capacity: 37gal. [140liter]
Electrical connection: 1x220V, 3x208V/60Hz

- Single door
- Integrated hot air dryer
- 2 Dosing pumps for liquid detergent

Steelco Series 500 LED Controller
- ED display controller with 10 wash and disinfection program for
  medical instruments.

- RS232 port for printer or PC connection

Steelco Series 500 LCD Controller
- LCD display controller with 40 wash and disinfection program for
  medical instruments.

- RS232 port for printer or PC connection

Steelco Series 500 Soft-Touch Controller
- Full glass color soft touch controller with 40 wash and disinfection program for medical instruments.

- RS232 port for printer or PC connection
- USB port for washing cycle down load and/or software upgrades
